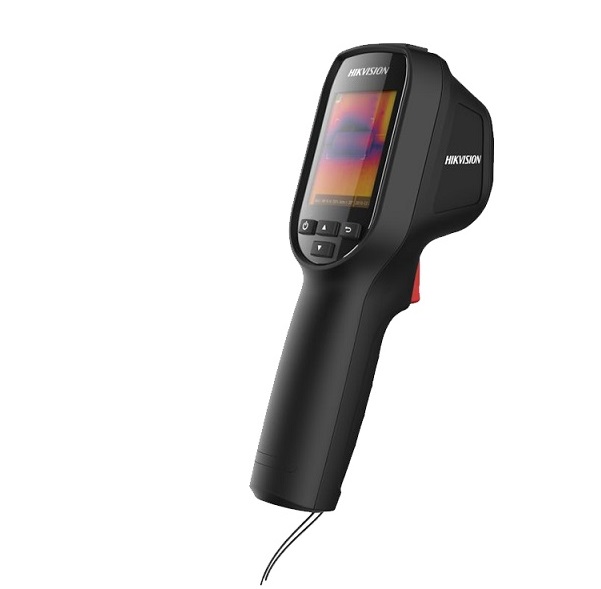

CAMERA IP THÂN ĐO THÂN NHIỆT CẦM TAY DS-2TP31B-3AUF
- Cảm biến hình ảnh: Uncooled Focal Plane Arrays.
- Độ phân giải camera: 160x120.
- Temperature accuracy: ±0.5℃.
- Thermographic Range: 30-45℃.
- Chiều cao lắp đặt: 1.5m.
- Khoảng cách khuôn mặt: 1m.
THÔNG SỐ KỸ THUẬT CHI TIẾT:
| Parameter | |
| Image sensor | Uncooled Focal Plane Arrays |
| Max. Resolution | 160 ×120 |
| Pixel Pitch | 17μm |
| Response waveband | 8μm to 14μm |
| NETD | < 40mK (@ 25 °C,F#=1.0) |
| Field of View | 37.2°×50° |
| Focal length | 3.1 mm |
| IFOV (mrad) | 5.48 mrad |
| Thermal | |
| Min. Focus Length | ≥ 150 mm |
| Module | |
| Aperture | F 1.1 |
| Monitor | 320 ×240 resolution 2.4’’ LCD display |
| Image Display | |
| Palettes | Black hot, White hot, Rainbow, Ironbow |
| Rules | 3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature |
| Thermography | |
| Thermographic Range | 30°C to 45 °C |
| Thermographic Accuracy | ±0.5 °C |
| Battery Type | Rechargeable Lithium Battery |
| Battery | |
| Battery Operating Time | 8 hours continuous running |
| Laser Light | Support (Point to the thermography target) |
| Functions | |
| Storage | Replaceable memory card (default 8G, support up to 128G storage) |
| Photo | Thermal image |
| General | |
| Language | English |
| Power | 3.7 V DC/0.4 A |
| Power Consumption | Less than 1.2 W |
| Hardware Interface | Micro USB |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Protection level | IP54 |
| Drop Test Height | 2m (6.56 feet) |
| Dimension | 196 mm ×117 mm ×59 mm (7.7 ″ × 4.6 ″ × 2.3 ″) |
| Weight | Approx. less than 350 g (0.77 lb) |
| Accessory | Power Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap |
- Bảo hành: 24 tháng.
