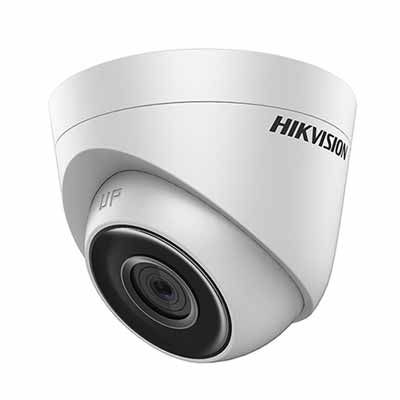

CAMERA HIKVISION IP DOME 2MP DS-2CD1321-I

Thương hiệu: HIKVISION | Tình trạng: Còn hàng
Liên hệ

CAMERA IP HIKVISION DOME 2MP DS-2CD1321-I

- Cảm biến ảnh: 1/2.8″ progressive scan CMOS
- Độ phân giải: 2.0 Megapixel.
- Ống kính: 2.8mm/4mm/6mm
- Tầm xa hồng ngoại nhìn đêm: 30m
- Hỗ trợ chống ngược sáng Digital WDR, IP67, PoE

Xem thêm

CAMERA IP HIKVISION DOME 2MP DS-2CD1321-I
- Camera IP bán cầu hồng ngoại, chuẩn nén H.264/MJPEG
- Cảm biến ảnh: 1/2.8″ progressive scan CMOS
- Độ phân giải: 2.0 Megapixel.
- Ống kính: 2.8 mm @F2.0, horizontal field of view 95°, 4 mm @F2.0, horizontal field of view 83.6°6 mm @F2.0, horizontal field of view 55°
- Độ nhạy sáng cao: Color:   0.01Lux @(F1.2, AGC ON),0 Lux with IR
- Tầm xa hồng ngoại nhìn đêm: 30m.
- Chống nhiễu kỹ thật số DNR, Chống ngược sáng kỹ thật số WDR, Cắt lọc hồng ngoại ICR, Chức năng bù ngược sáng BLC, Tự chuyển chế độ ngày/đêm.
- Tiêu chuẩn ngoài trời: IP67
- Lắp đặt trong nhà hoặc ngoài trời
- Màu trắng
- Dải nhiệt hoạt động rộng: ( -30°~60°).
- Nguồn cấp 12V DC hoặc PoE.
- Công suất: Max. 4 W/6 W (PoE)
- Kích thước: Φ 85.5 mm × 70 mm
- Trọng lượng: 350g
- Xuất xứ: Trung Quốc
- Bảo hành: 24 tháng

Đặc tính kỹ thuật

Image Sensor1/2.8 inch Progressive Scan CMOS
Min. Illumination0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s, support slow shutter
Lens2.8 mm @F2.0, horizontal field of view 95°, 4 mm @F2.0, horizontal field of view 83.6°
6 mm @F2.0, horizontal field of view 55°
Lens MountM12
Day & NightIR cut filter with auto switch
3-Axis AdjustmentPan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360°
DNR3D DNR (Digital Noise Reduction)
Wide Dynamic RangeDigital WDR
Video CompressionMain stream: H.264+/ H.264
Sub stream: H.264, MJEPG
H.264 TypeBaseline Profile/Main Profile
Video Bit Rate32 Kbps to 8 Mbps
Dual StreamsSupport
Max. Resolution1920 x 1080
Main Stream50Hz: 1920 x 1080,1280 x 960,1280 x 720 @25fps
Max. Frame Rate60Hz: 1920 x 1080,1280 x 960,1280 x 720 @30fps
Sub-stream50Hz: 704 x 576, 640 x 480, 352 x 288, 320 x 240 @25fps
Max. Frame Rate60Hz: 704 x 480, 640 x 480, 352 x 240, 320 x 240 @30fps
Image SettingsBrightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night SwitchSupport auto, scheduled, and triggered by alarm input
OthersMirror, BLC (area configurable), Region of Interest (support 1 fixed region)
DetectionsMotion Detection, Dynamic Analysis
AlarmsVideo Tampering, Network Disconnected, IP Address Conflicted, HDD Full, HDD Error
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
StandardONVIF (PROFILE S,PROFILE G), PSIA, CGI, ISAPI
General FunctionAnti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filter, Watermark
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Power Supply12VDC ± 25%, PoE (802.3af)
Power ConsumptionMax. 4W/ 6W (PoE)
IR Range30 meters
Protection LevelIP67
DimensionsΦ85.5 x 70 mm
Weight350g
